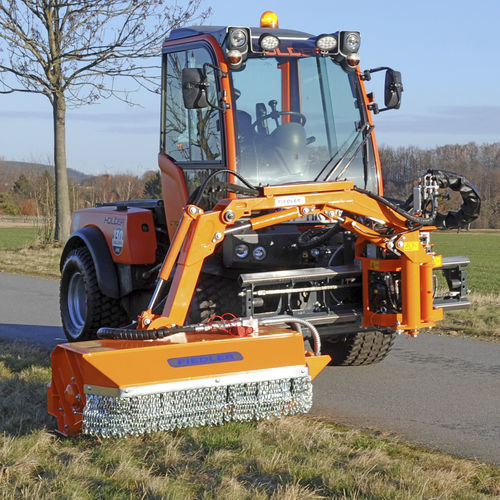

Mounted boom mower FFA series

flail

• Available control variants of the booms -K - black-white -P - proportional • Control via FMC with the variants, depending on the control variant (Control panels) -EASYControl (3D-Maus) -Multimatic Control (multifunction joystick) • including parking device with chassis and brakes • Optionally with data acquisition -Sliding frame width 1.50m, effective lateral displacement 1.10m -Work left and right possible -Compact transport position in front of the vehicle -Adjustable prismatic guides in the sliding part -Double acting hydraulic collision protection (each 30°) with gas spring accumulators and automatic resetting -With automatic copying and adjustable device cushioning -FIEDLER-SWS® quick-change system for fast and problem-free working tool change -High-strength bronze bushings in the joints Optional: -Working tools -Lopper, ground drill, flat mower head, ditch cutter, hedge trimmer, delineators washing brush, flail mower head, stump cutter, weed brush Technical specifications: -Weight: approx. 290kg (depending on the equipment) -L × W × H: 597 x 1,520 x 864 (mm) -Oil consumption: -Control variants K: 15l/min at 200bar (steer block FFA) -Control variants P: 25l/min at 180bar (steer block FFA) -Colour: Utility services orange RAL 2011
