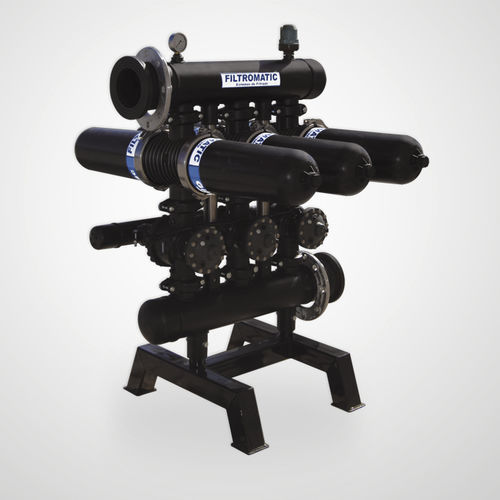

Irrigation disc filter Double Giradisc

cartridgestainless steelcarbon steel

Automatic disc equipments with 4” Giradisc filters with double filtering element for medium and large flows. Features: Filtering element: Slotted disc cartridge manufactured with polypropylene for an optimum resistance and filtering quality for an extended filter life. Filtering grades from 5 to 200 microns. Equipment: Filtering equipments are supplied with hydraulic counterwash valves, joints, screws, suction pads, a pressure gauge, an automatic cleaning timer, a differential pressure switch and connection collectors. Materials: Filter body made of polyamide reinforced with glass fiber. Collectors can be manufactured from HDPE high-density polyethylene, from stainless steel or carbon steel with a treatment of sandblasting-phosphating, inner/outer electrostatic paint coats in epoxi-polyester, later polymerized in a high-temperature oven. Modularity: Its modular design allows an easy enlargement and adaptation to any kind of spaces. Pressure features: Maximum work pressure: 10 kg/cm2. Equipments with higher pressure requirements can be also supplied to order. Adaptations: There are special solutions for saline water installations; and possibility of cleaning using external water or compressed air. Operation/Technology Filtering process: It is carried out through the discs when filtering water; this creates a motion that makes dirt particles flow in continuous movement; That keeps the discs clean for a longer period of time, reduces cleaning process time and also optimizes water volume and energy used.
