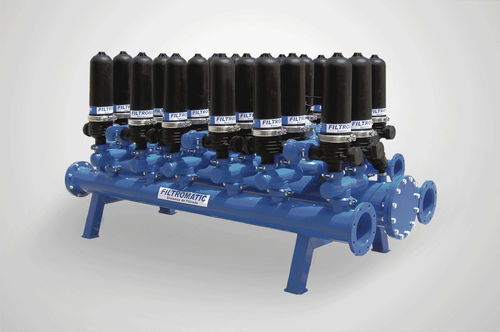

Irrigation disc filter Explorer

cartridgecarbon steelautomatic

The EXPLORER series is an innovative automatic disc equipment range for large flows with a remarkable, wide filtering surface. Its modularity allows multiple manufacturing options to meet the needs of our clients. Features: Filtering element: Slotted disc cartridge manufactured with polypropylene for an optimum resistance and filtering quality for an extended filter life. Filtering grades from 5 to 200 microns. Hydrociclonic effect: The innovative tangential input makes it possible, and keeps the filtering cartridge clean for a long time and minimizes water consumption and energy flow used. Equipment: Filtering equipments are supplied with hydraulic counterwash valves, joints, screws, suction pads, a pressure gauge, an automatic cleaning timer, a differential pressure switch and connection collectors. Materials: Filter body made of polyamide reinforced with glass fiber. Collectors can be manufactured from HDPE high-density polyethylene or carbon steel with a treatment of sandblasting-phosphating, inner/outer electrostatic paint coats in epoxi-polyester, later polymerized in a high-temperature oven. Modularity: Its modular design allows an easy enlargement and adaptation to any kind of spaces. Pressure features: Maximum work pressure: 10 kg/cm2. Equipments with higher pressure requirements can be also supplied to order. Adaptations: There are special solutions for saline water installations; and possibility of cleaning using external water or compressed air.
