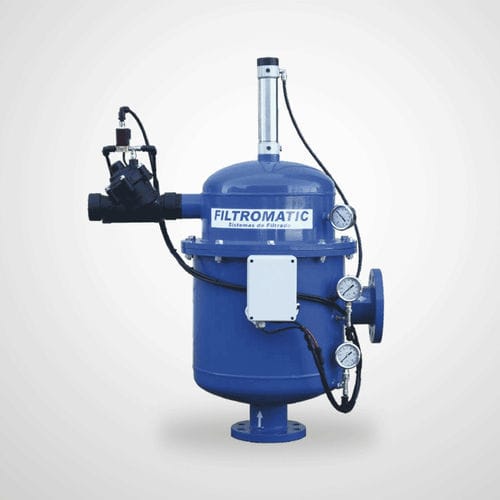

Cartridge irrigation filter FMH3 series

screenstainless steelcarbon steel

Hydraulic-driven, self-cleaning automatic vertical screen filters are an optimum filtering solution with no external supply running. An efficient solution for small and medium flows with a wide range of filtering grades. Features: .Filtering element: Cartridge composed of several high-quality stainless steel screen coats forming a single body that allows a high filtering efficiency. Filtering grades from 5000 to 5 microns. .Suction system: Screen cleaning through exclusive-design special scanner nozzles that vacuum dirt particles, triggered regarding differential pressure and/or time. The automatic cleaning cycle does not interrupt the filtering process. .Equipment: Filtering equipments are supplied with hydraulic start-up devices, a hydraulic valve, joints, screws, pressure gauges, an automatic cleaning timer and a differential pressure switch. .Materials: Filter body made of carbon steel with a treatment of sandblasting- phosphating, inner/outer electrostatic paint coats in epoxi-polyester, later polymerized in a high-temperature oven. The equipment can be manufactured from stainless steel and with special treatment for saline water purposes. .Modularity: Filter groups can be created. Pressure features: Maximum work pressure: 10 kg/cm2. Equipments with higher pressure requirements can be also supplied only to order. .Adaptations: Special solutions for high-temperature installations can be also delivered.
