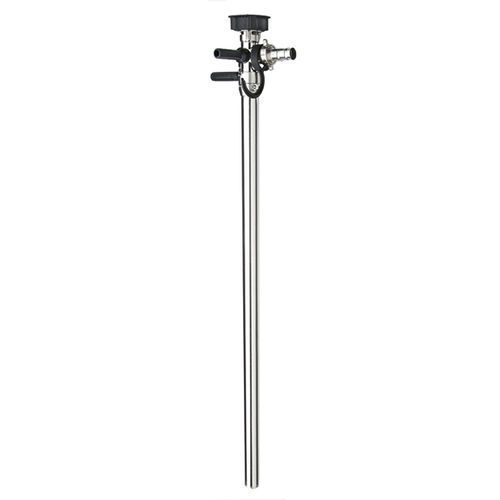

Fuel pump F 425/FP 425

for cleaningsubmersiblevertical

With the Drum pump F/FP 425 there is less than 0.05 l residual amount left in a 200 l drum, so maximum 0.02 %. The pump has an integrated backflow valve that is easy to close before taking the pump out of the container. Thus the backflow of the medium in the pump is prevented. This makes optimum use of especially expensive media possible and saves additional cleaning and disposal costs when handling problematic media. The pump is available in stainless steel, polypropylene and hastelloy C. In stainless steel and hastelloy C the pump F/FP 425 can also be used in hazardous areas. Technical data: -Delivery head: max. 26 mwc2 -Viscosity: min. 1 mPas - max. 1200 mPas2 -Outer tube diameter: min. 41 mm3 - max. 50 mm3 -Immersion length: 700, 1000, 1200 -Materials outer tube: hastelloy C, Polypropylene, Stainless steel -Media / Fluids: Acids, Alkalis, Fuels, Highly flammable media, Petroleum products, Solvents -Seal: with mechanical seal -Container: 1000 l IBC, 200 l drums Product attributes -With backflow stop -Two adjusting levers to easily close the backflow stop -With mechanical seal for seal of inner tube -Metal core in the inner tube at the PP version -Versions for use in hazardous areas available -Grease-lubricated shaft bearing -Can be combined with various motors as required Benefits -Optimal residual emptying with e.g. less than 0.05 l residual amount left in 200 l drum -No tilting to totally empty the drum -Reduction of cleaning and waste disposal costs -No loss of medium when taking the pump from drum to drum -Optimal use of fluids
