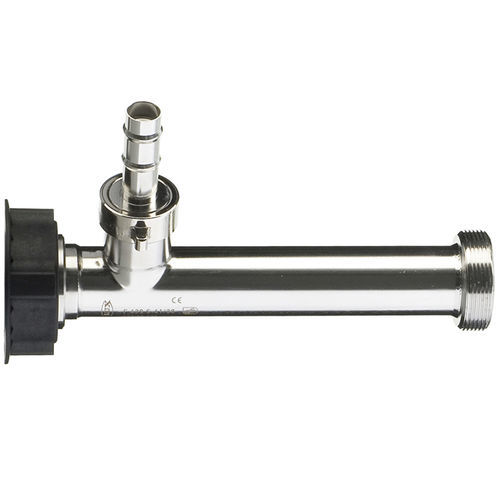

Fuel pump F 430 TR

for cleaningcentrifugalmobile

The horizontal Drum and container pump F 430 TR is ideal for conveying media from IBCs, tanks and other containers with low level outlet. E.g. if a tank is not accessible from the top, or if the spatial conditions do not allow use of a vertical pump. For cleaning, the pump can be easily and quickly taken apart in its two main components. The pump is available in stainless steel or polypropylene. The stainless steel version can also be used in hazardous areas. Technical data: -Delivery head: max. 30 mwc2 -Viscosity: min. 1 mPas - max. 1200 mPas2 -Outer tube diameter: min. 40 mm - max. 41 mm -Length: 200 -Materials outer tube: Stainless steel, Polypropylene -Media / Fluids: Fuels, Alkalis, Highly flammable media, Solvents, Petroleum products, Acids -Seal: with mechanical seal -Container: 1000 l IBC, Container with floor drain Product attributes -Can be used for numerous media -For containers with floor drain -With mechanical seal for inner tube seal -Connection possibility for mobile and stationary use -Can be disassembled into two parts: inner tube complete and outer tube -200 mm long -Can be combined with various motors as required -Temporary operation against closed valve (hand nozzle, vall valve) possible until max. operating temperature has been reached Benefits -Provides highest flexibility in installation and mobility -Can also be used at low ceiling heights -Stainless steel version for use in hazardous areas -Can also be integrated into pipe systems -A horizontal centrifugal pump that can be used with different FLUX motors
