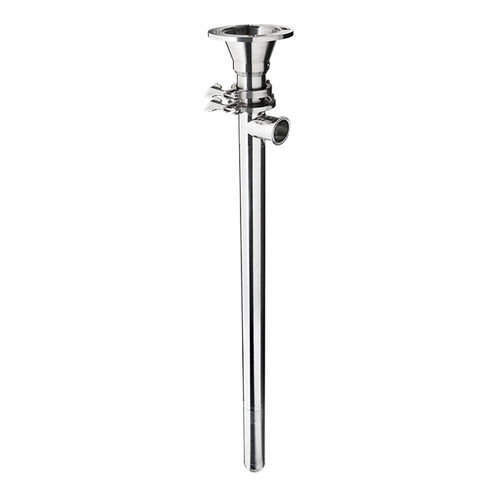

Vertical pump VISCOPOWER F 580

mobilestationarygear

The FLUX progressive cavity pump VISCOPOWER F 580 - Industry with bearing flange is suitable to pump thin to highly viscous media. The positive displacement pump works smoothly at a constant pressure and ensures a gentle, pulsation-free pumping. The progressive cavity pumps VISCOPOWER can be used mobile and stationary, has only a few components and can be easily dismantled. Technical data: -Viscosity: min. 1 mPas - max. 100.000 mPas -Outer tube diameter: min. 53 mm - max. 53 mm -Immersion length: 700, 1000, 1200, 1500 -Materials outer tube: Stainless steel -Seal: Open mechanical seal or closed mechanical seal -Container: 1000 l IBC, 200 l drums, Small containers, Hobbocks, Tanks > 1000 liters Product attributes -Positive displacement pump -Motor connection via bearing flange -Product removal out of drums and containers with bung possible -Smooth pumping of the liquid with very little turbulences -Continuous operation -Comprehensive modular system -Also available with variable speed adjustment (transfer proportional to speed) -Pump can be completely dismantled -Bearing flange between motor and shaft -Drive possible via three phase motors, gear motors or compressed-air motors -With open/closed mechanical seal -Shaft in stainless steel -Rotor in stainless steel -Different stator materials are available: NBR white, FKM, PTFE -100% Made in Germany Benefits -Wide range of viscosity can be covered -Smooth pumping of thick, shear-sensitive and hardly flowable media -Also sensitive media and solid components can be pumped -Optimal for viscous self-flowing media -Also suitable for media shear-sensitive -Transfer at constant pressure
