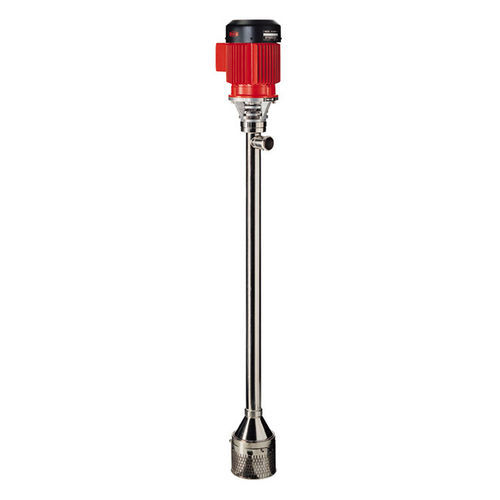

Wastewater pump F 620 seriesfor AdBluesubmersiblecentrifugal
Add to favorites
Compare this product
Characteristics
- Application
- for wastewater, for AdBlue
- Priming
- submersible
- Other characteristics
- centrifugal, impeller, vertical, electric
- Flow
383 l/min
(101.1779 us gal/min)- Power
Max.: 4 kW
(5.4 hp)Min.: 0.8 kW
(1.1 hp)
Description
To pump heavy flammable liquids from containers, tanks and open containers. The pump is available in two versions with open conical impeller or a closed centrifugal impeller in different sizes.
Technical data:
-Delivery head: max. 12 mwc1
-Viscosity: min. 1 mPas - max. 2500 mPas1
-Diameter pump housing: max. 140 mm2
-Diameter mounting flanges: max. 265 mm2
-Materials outer tube: Stainless steel
-Media / Fluids: Acids, AdBlue®, Alkalis, Fuels
-Seal: mechanical seal
-Container: 1000 l IBC, Tanks > 1000 liters
Product attributes
-Available with open conical rotor or closed impeller
-Two sizes available:
-Conical rotor 15 and 30
-Impeller 157/3 and 157/5
-Mounting flange with outer Ø 265 mm
-Consisting of an inner and outer tube as well as the drive shaft that is mounted in the inner tube
-Installation in pressurised tank or gas scrubber possible
Benefits
-Suitable for tanks heights up to 4.1 m without bottom opening
-Pumps also fluids containing solids
-For mobile and stationary use
-Motor replaceable
-Pump is hermetically tight
