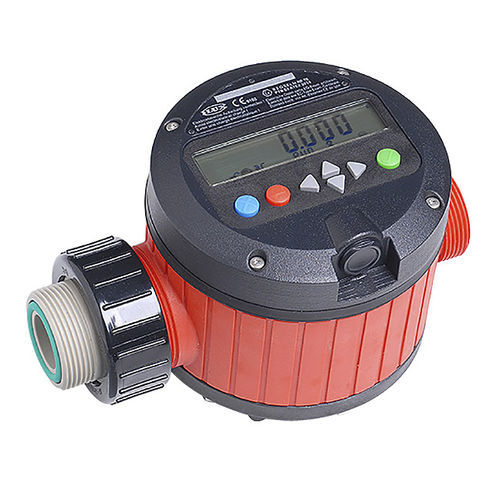

Magnetic flow meter FMC 100

irrigationfor water

FLUX Flow meters, nutating disc type FMC 100, are designed for the use with FLUX drum pumps or for the stationary application e.g. in piping systems. With the evaluation unit FLUXTRONIC® filling and dosing processes of almost all kinds of fluids can be performed with maximum precision and highest safety. In automatic mode it is possible to output a signal for control purposes with the evaluation unit and the use of a switching amplifier. This way e.g. motor and / or magnetic valve and the most different processes can be controlled. Technical data: -Flow rate: min. 10 l/min - max. 100 l/min -Filling accuracy: +/- 1 % -Operating pressure: max. 6 bar -Size of solids: max. 1,5 mm -Viscosity: min. 1 mPas - max. 2500 mPas -Housing Materials: Ethylene-Tetrafluoro-Ethylene, Polypropylene, Stainless steel -Media / Fluids: Acids, Alkalis, Aqueous salt solutions, Fuels, Highly flammable media, Petroleum products, Solvents Product attributes -Nutating disc type -Insensitive functional principle -Inductive counter - independent of the conductance of the medium -No metals in the medium area -High resistancy -Low weight -No mains connections required -Ex-protected Benefits -Insensitive to small solids -Easy handling -Control by PLC possible -Also for use in hazardous areas -Easy assembly on pump -Batch operation possible -Also for non-lubricating media
