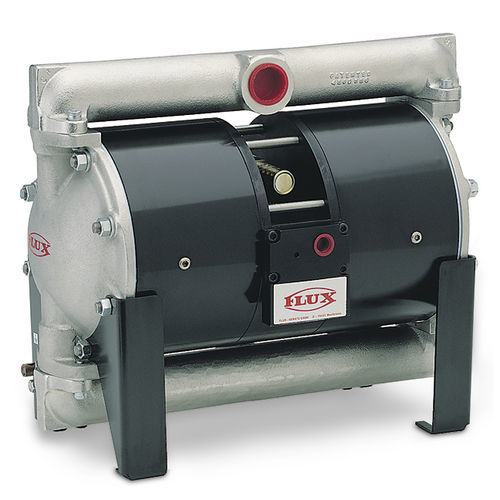

Wastewater pump FDMH 25

self-primingdiaphragmhigh-pressure

The FLUX air-operated diaphragm pump FDMH 25 in injection-moulded and especially designed for pressure increase (3:1). The pump is self-priming and protected against dry running. The pump is distinguished for its versatility and can be used for pumping low to high viscosity media with solid particles, abrasive media, highly flammable media or liquids with high gas content. Technical data: -Operating pressure: max. 7 bar -Suction head: max. 3 m1 -Size of solids: max. 3,2 mm -Viscosity: min. 1 mPas - max. 15000 mPas2 -Housing Materials: Stainless steel -Media / Fluids: Abrasive media, Aggressive media, Highly flammable media, Viscous media -Connection pressure side: G 1 -Connection suction side: G 1 Product attributes -Moulded version -Self-priming even from a dry start -Variable delivery rates by adjusting air pressure to the pump -No need of by-pass control -Fully submersible -Unbalanced air valve design eliminates stalling -Oil-free operation -Regulating valve insensitive to foreign matter in the air Benefits -Suitable for dry run operation -Blockage-free, infinitely adjustable operation -Long service life -Free of wear -Service-friendly operation -Versions available for use in hazardous areas
