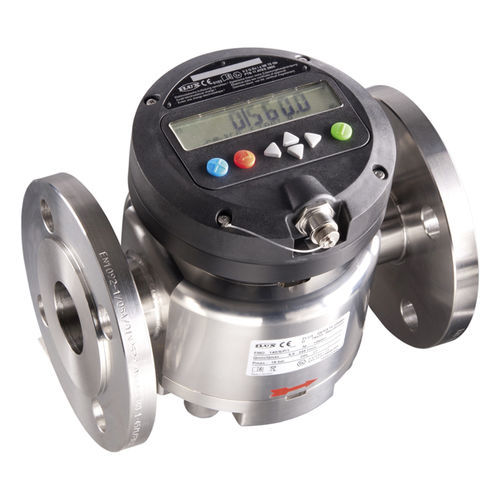

Magnetic flow meter FMO 150

irrigationfor water

The flow meter FMO 150 built according to the oval rotor design is suitable for measuring pure, thin to highly viscous media. With the evaluation unit FLUXTRONIC® filling and dosing processes of almost all kinds of fluids can be performed with maximum precision and highest safety. In automatic mode it is possible to output a signal for control purposes with the evaluation unit and the use of a switching amplifier. This way e.g. motor and / or magnetic valve and the most different processes can be controlled. Technical data: -Flow rate: min. 15 l/min - max. 380 l/min -Filling accuracy: +/- 0,5 % -Operating pressure: max. 16 bar1 -Viscosity: min. 1 mPas - max. 500.000 mPas2 -Housing Materials: Aluminium, Stainless steel -Media / Fluids: Acids, Alkalis, Fuels, Highly flammable media, Petroleum products, Solvents Product attributes -Oval rotor design -For thin to highly viscous pure media -Available with integrated evaluation unit FLUXTRONIC® or as impulse version -For the use in piping systems -High accuracy and repeat accuracy -Signal can be forwarded to FLUXTRONIC® or another external control as e.g. PLC -Can be displayed in liter, gallons or kilogram -Semi-automatic filling with a switching amplifier possible -Can be used for ex-applications in Zone 1 Benefits -Very precise dosing possible -High resistancy -Wide range of viscosities can be covered -Can also be used for pulsating volume flows -Low pressure loss -Also available in Version with FDA CFR 21
