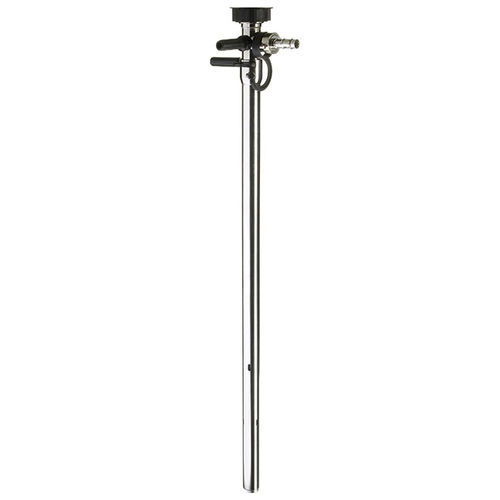

Cleaning pump F 426

submersiblevertical

The Drum pump F 426 is ideal for mixing and/or pumping inhomogeneous media. You can keep media moving that tend to segregate, even during pumping. With the outlet closed, e.g. via a hand nozzle, the F 426 can be temporarily operated as pure mixing pump. By turning the adjusting lever, the pump can be easily adjusted to "mixing" or "pumping". The pump is easy to dismantle for rapid cleaning. The pump is available in stainless steel and polypropylene. The stainless steel version can also be used in hazardous areas. Technical data: -Delivery head: max. 13 mwc2 -Viscosity: min. 1 mPas - max. 1200 mPas2 -Outer tube diameter: min. 41 mm3 - max. 50 mm3 -Immersion length: 1000, 1200 -Materials outer tube: Polypropylene, Stainless steel -Media / Fluids: Acids, Alkalis, Highly flammable media, Petroleum products, Solvents -Seal: with mechanical seal Product attributes -Mixing and/or conveying of inhomogeneous liquids -Two control levers to easily open/close the mixing openings -Mixing openings allow backflow of medium for mixing back into the container -With mechanical seal for inner tube seal -Inner tube with metal core at PP -Can be combined with various motors as required Benefits -3 operating modes in one pump: - Conveying - Conveying with simultaneous mixing - Temporarily mixed operation -Switching operating modes is possible even while operating -Easy to dismantle for cleaning
