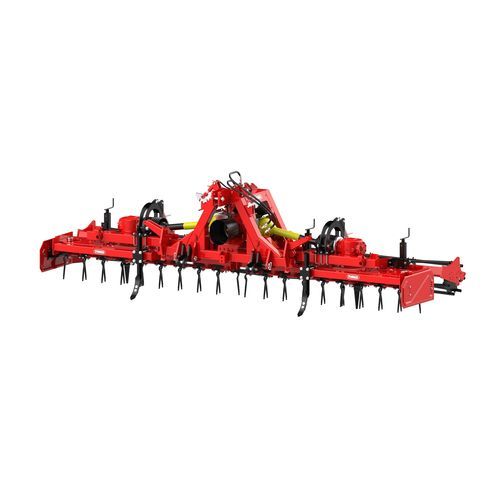

Basic machine
Universal 3 point linkage Cat. 2 & 3
Tractor linkage swinging arms
Hydraulic system for opening and refolding
Hydraulic locking system for transport position
Exclusive hydraulic floating system for adaptation to soil conditions
Central gearbox 1000 rpm
Lateral single-speed gearboxes
Rotor 320 rpm
Monobloc tine-holder shaft hot-forged
2x Tines per rotor
Special Tine system bi-directional "ZEUS" ideal for a low power absorption
Cylindrical anti-flood tine-holder shaft
Rear levelling clod bar PARABLOC adjustable by crank handles
Central adjustable eradicator tine
Adjustable side plates on springs
Working depth adjustable by crank handle
Safety front bar
230cm wide during transport
Rear lights bar
Lateral cardan shaft with shear bolt torque limiter SB type
Central standard cardan shaft (1”3/8 Z=6 tractor side yoke)
