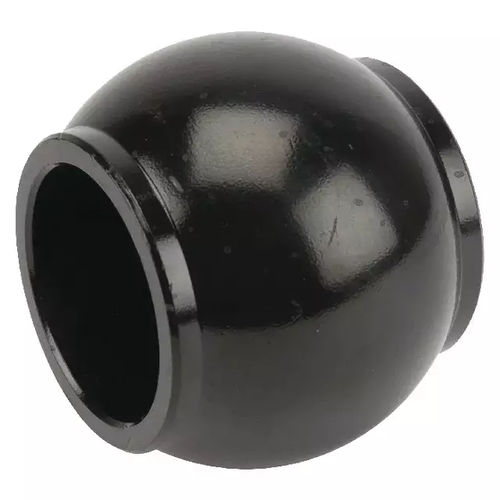

Removable ball end 3454156
singlefor top linkscompatible for Agri-power

removable ball end
removable ball end
removable ball end
Add to favorites
Compare this product


Characteristics

Type
removable
Configuration
single
Applications
for top links
Brand compatibility
compatible for Agri-power
Weight

0.665 kg
(1.466 lb)

Inner diameter

25 mm
(0.98 in)

Outer diameter

60 mm
(2.36 in)

Thickness

51 mm
(2.01 in)

Description

•Reinforced upper thrust rod ball made of 20MnCr5 steel (hardened chromium-manganese steel) with an electrochemical coating. Application •The upper ball joints are used as attachment points between the machine and the upper hitch. Benefits •The ball and socket joint with guide cone allows the tractor's lower links to be guided when reversing for hitching. Once in contact, the balls engage in the lower hooks. How to use •To install the ball joint, slide it onto its pin, which has a hole for inserting a safety pin. The safety pin makes it impossible for the lower ball joint to slip off the coupling pin, thus ensuring optimum security.
