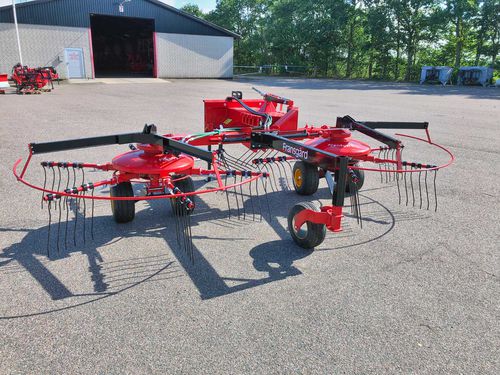

Rotary rake TI-6000FL

center deliverybi-rotor

Fransgård's front-mounted rotary rake is a niche machine for shredding and baling/collecting in a single operation. This saves the user a lot of time and money. The width of the rake is hydraulically adjustable, and the swath width can be adapted to the pick-up of the baler. A front-mounted rake also means no driving into the material first and provides optimum working comfort for the operator. Efficient front rotary rake with many advantages The TI-6000FL is hydraulically driven and requires only 45 l/min, which means that there is also excess oil for the baler. The bracket is fitted with bolts which make it easy to change. The grate can be mounted in the front lift or on the front loader. When mounting the front loader, it is recommended to have a floating position on the tilt function of the loader. Stepless height adjustment of wheels and angle of rotors. Removable arms without the need for tools. The rake is prepared for front wheels (optional extras), which are always recommended for hilly terrain. The rake is manually packed during transport and sticks out 3.5 m in front of the tractor. Technical data: Transport width:2.4 m Rotor, diameter:236 cm Number of raking arms:12 Number of rake springs per arm:3 Number of wheels:4 Wheel size:18.5 x 8 / 6 ply Hydraulic connectors:2 double 3-point suspension:Cat II Front loader:EURO /SMS Power requirement oil:45 l/min Working speed km/h:8-12 Weight:698 kg Brackets, front wheel The front rake is prepared for mounting front wheels. The front wheel ensures that the rake follows the terrain and does not go into the ground (Optional extra item no. 4215).
