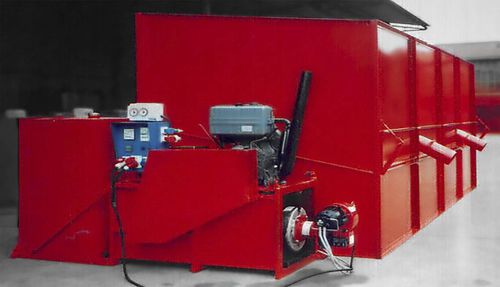

Grain dryer STATIC

stationaryelectrically-powered

Pedrotti Static Trays are universal dryers, machines that are suitable to dry everything, even the most difficult crop, thanks to its intuitive functions and the easiness of the working operations. With a double bagging output, easy to clean and regulate, it is perfect to dry small amounts of crops down to the desired moisture level. Being a static dryer, it is also the ideal machine to dry also the soft grains, without even the slightest scratch or damage on the crops skins TECHNICAL SPECIFICATIONS – Batch capacity: min. 3m3 /max. 8m3 – Burner: Light diesel-oil 300.000Kcal/h max. High/low flame controlled – Drying cage dimensions: WxLxH: 200 x 500 x 220 cm Drying area: 10,0m2 FUNCTIONING 1. Burner 2. Combustion Chamber 3. Electric Control Panel 4. Blowing Centrifugal-design Quiet Fan 5. Electric Motor HP 5,5 6.Fuel tank 300 lts. 7. Drying Cage 8. Perforated inox floor 9. Handle operating the discharging flap 10.Bag filler 11. Air Plenum Chamber
