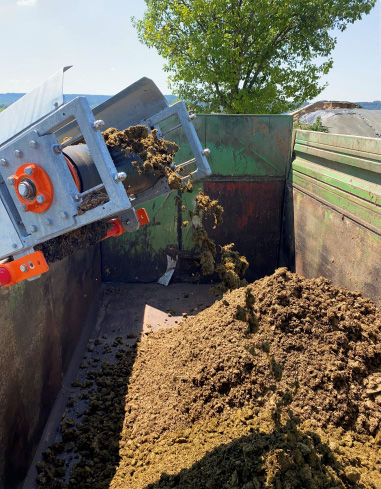

Mobile slurry separator PM300 TWIN

screwwith pump

Throughput capacity depending on separator type from approx. 80 - 100 m³. TECHNICAL DATA & ADDITIONAL EQUIPMENT •Pressing screw made of steel, anti-wear coating and counter-bearing •Sieve drum 0.5 and 0.75 mm in stainless steel •Adjustable ejection regulator •Built on a robust base frame •Gear motor 15.0 kW •Feed pump: exenter screw pump with gear motor incl. pressure and temperature control •Conveyor belt for the discharge of the separated solids, laterally and height adjustable •Control unit: switch cabinet weatherproof, ready wired and tested, operating hours counter, 230 •V socket with FI circuit breaker, connection power supply 32 Amp., frequency converter for charging pump, monitoring •safety device •Equipment with pressure control •Press water pump •Monitoring unit press plug •Monitoring unit dry run •Liquid sensor •Switch-off function via time relay •Pressure display for pressure probe on control cabinet •Heavy material separator •Automatic relubrication unit
