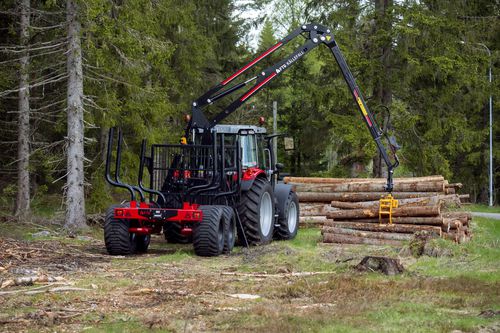

Trailer-mounted forestry crane P75T

tractor-mountedknuckle boomfor wood chipper

The Källefall P75T forestry crane has a crane length of 7.5 metres and a lifting capacity of 390 kg at maximum reach. It is equipped with a wide-angle joint and a telescopic arm with an internally positioned cylinder for even greater functionality The P75T crane is equipped as standard with a 3-tonne endless rotator, an FB190WF timber grab, a rotator joint with pendulum brake, a rotary lever control and a 4-cylinder slewing gear. The forestry crane has a lifting torque of 43 kNm (gross) and a slewing torque of 11 kNm. • Unique parallel movement • The same lifting torque over the entire loading range • Runs with 60-65 % less oil flow The recommended oil flow for operating the P75T crane is 35 - 40 l/min. Loading crane P75T suitable for: • Forestry trailer FB90 • Forestry trailer FB90-2WD • Forestry trailer FB90D • Forestry trailer FB100 • Forestry trailer FB100-2WD • 3-point attachment frame
