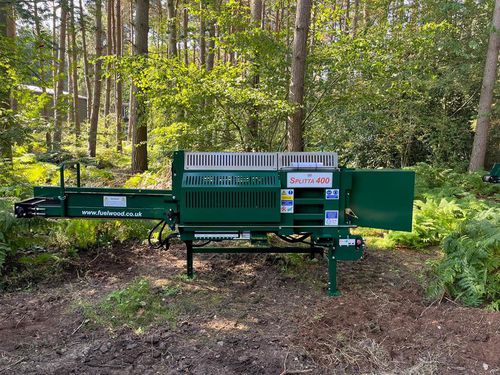

Hydraulic wood splitter SPLITTA 400™

electrichorizontalstationary

SPLITTA 400TM takes round logs up to 40cm diameter and converts them into split firewood or kindling at rates over 12 cubic metres of solid timber per hour automatically! The Unique splitting blade in the form of an ‘X’ is pushed into the end grain of the log. The blade is then retracted and the log fed sideways by a controlled distance. The cycle is then repeated. The machine can be adjusted from producing firewood to kindling in a matter of seconds and the size of firewood or kindling can be set to between 15 to 120 mm Technical Specifications: Overall Dimensions: Length (excl Chutes) 2286 mm Length (incl Chutes) 3117 mm Width 1795 mm Height 545 mm Weight (net) 1040 Kg Power Supplies: Electric Drive 415v 3 Phase 9.2 kW - 39 lpm PTO driven Pump and Tank Customer Hydraulic Supply - 45 lpm @ 190 Bar max Split Force: Maximum 150 kN Cycle Time: Minimum 3.0 secs
