Firewood processor with chainsaw FACTORY

with belt conveyorelectric

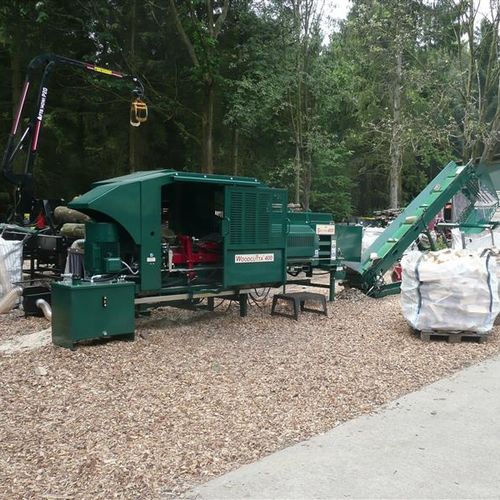

Fuelwood Factory is a combination of Woodcutta 400 and either Kindlet Pro, Splitta 360 or Splitta 400 to create a fully automated arrangement for converting timber lengths into split logs or kindling. Various options are available to extend the capability of the line-up. Woodcutta 400 converts the timber into cut rings using a hydraulic chainsaw, then transfers them to the Kindlet Pro or Splitta option. The rings are converted to a split product of consistent sectional size, regardless of the ring diameter. The sectional size can be easily and quickly adjusted from log to kindling sizes . The output is then presented for bulk loading or for bagging into net bags. The Woodcutta boasts many unique features developed by Fuelwood, The log being cut is gripped and held so it cannot twist. The cutting bar system uses .404 bar/chain which automatically regulates the cutting pressure giving optimum performance. The waste and last 'short' log is automatically ejected from the machine keeping all the processed logs to exactly the same length. Working at optimum timber Ø40cm the machine is capable of producing 13m2/hour (solid!) per hour. Options available include: Powered Feed Deck to transfer timber lengths to Woodcutta 400 Output Elevator to convey split produce into bulk containers Manual Bagga to allow net bagging of split produce Harrington Woodfuels Case Study Technical Specifications: Overall Dimensions: Plan dimensions dependent on options With Manual Bagga Overall width - 11.6 m (38’-0”) Overall Height - 2.3 m (7’-6”) With Output Elevator Overall width - 11.7 m (38’-4”) Overall height - up to 2.7 m (8’-10”)
