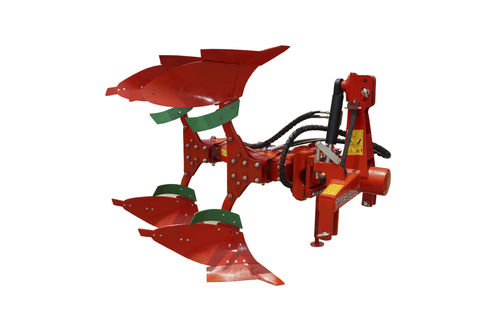

Mouldboard plow RM SERIES
mountedreversiblewith hydraulic adjustment

mouldboard plow
mouldboard plow
Add to favorites
Compare this product


Characteristics

Form
mouldboard
Mobility
mounted
Other characteristic
reversible, with hydraulic adjustment, adjustable-width
Width

Max.: 1,680 mm
(66.14 in)

Min.: 600 mm
(23.62 in)

Tractor power

Max.: 90 ch
(90 hp)

Min.: 50 ch
(50 hp)

Description

Reversible plough is designed to work in all types of soil for soil breaking, soil raising, soil turning and soil mixing. It cultivates the soil and prepares seed bed which will control the weeds and diseases. It can also premix fertilizer and herbicide by stubbing the soil and decrease the wind and water erosion and leaving the rainwater on the field. Reversible plough is made of heavy duty pipe frame 140 mm x 120 mm, which has high trash clearance allowing the plough to operate despite heavy crop residue. These reversible ploughs are manufactured as 2 Bottom, 3 Bottom and 4 Bottom available in 12 mm body size. The bar points of MB plough having longer life and has special wear-resistant steel for toughest ploughing jobs. The individual mould body can be adjusted according to the soil conditions by gang angling adjustment with locking device. FEATURES - Powder Coated paint and zinc coated fasteners to provide excellent resistant against corrosion. - Highest quality material mould and points which provides longest hours for operation and maximize the proƒOtability. - The mould is designed to work in all types of soil for functions such as soil breaking, soil raising, soil turning and soil mixing. - Suitable to plough any kind of land from Medium to extreme hard soil irrespective of large roots and other obstructions to obtain outstanding penetration performance. - Ground clearance and disc unit to unit space is adequate to cope up with trashy conditions. - Working width can be adjusted between 600 mm to 840 mm for 2 Bottom, 900 mm to 1260 mm for 3 Bottom, 1200 mm to 1680 mm for 3 Bottom
