Mouldboard plough CC SERIES
discchiselblade

mouldboard plough
mouldboard plough
Add to favorites
Compare this product


Characteristics

Form
mouldboard, disc, chisel, blade, French
Mobility
mounted
Number of shanks
1-10 shank
Other characteristic
adjustable-width, shear-bolt, depth control
Tractor power

Max.: 65 ch
(65 hp)

Min.: 35 ch
(35 hp)

Description

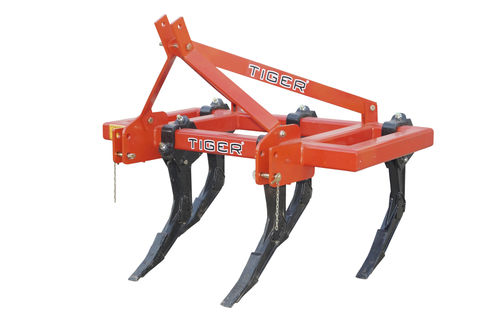

Chisel plough is designed to break the hard bottom of soil between 9 Inch to 16 Inch, which is normally formed because of standard plough used in the field. The purpose of breaking the hard bottom soil is to deliver rain and irrigation water easily to broken area and provide the water storage. Above hard bottom soil area, the soil is less open because of the slim structure of the tines. So that the moisture can be kept for a long time and also wind and erosion are decreased. Chisel plough is made of heavy duty pipe frame 100 mm x 100 mm, which has high trash clearance allowing the plough to operate despite heavy crop residue. The tines are made with special grad steel and resistance to cracking. The shear bolt is provided on each tines to prevent from stones and hard obstacle during the ploughing. FEATURES - Suitable for tractor from 50 HP to 110 HP - Chisel plough are deep tillage implements specially designed for breaking up hard pan layers and loosening the subsoil allowing better drainage, root growth and mineral osmosis. - Powder coated paint and zinc coated fasteners provides excellent resistant against corrosion. - It can loose and aerate soil up to 18 Inches deep. - High quality blade materials are provided for longest hours of operation and maximize the profitability of the farmers. - Optional rollers are provided at the back of the machine to break the bigger lumps to smaller clods and also work as depth controller for smooth ploughing operation. - Shear bolt is provided for each time to overcome against hard rock or solid obstacles.
