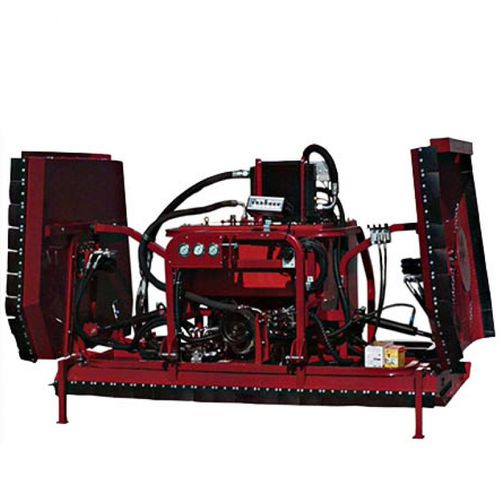

Mounted reach mower

drumfoldingPTO-driven

Hydraulic string strimmer composed by 3 main parts (2 folding side ones and a central one) with 4 cutting drums and 3 hoses per drum. CHARACTERISTICS Maximum working width of 5.1 meters (drum diameter 1.3 meters). Heat exchanger and electro fan. 3 point linking. PTO at 540 rpm Non-forest use Chain drive. Two folding side parts with 1.3 meters cutting width each. Hydraulic activation. Able to work via any combination of its 3 parts. Each cutting drum can work separately without getting off the tractor. Maximum working width 5 meters. Central part + 1 side part= 3.85 working width. Minimum cutting height 40 mm, manually adjustable. Low consumption (maximum driving consumption 60CV). Maximum pumps’ flow rate 145 l/m@2000 rpm. Controlled from the driver’s cab via remote control (operation of the cutting drums, folding and unfolding). COPIA system: allows for adapting the sides parts to the shape of the land so the work is done appropriately. Optimal work on slopes). Anti projection screens. Adjustable support legs to facilitate coupling and uncoupling and replacing cutting hoses.
