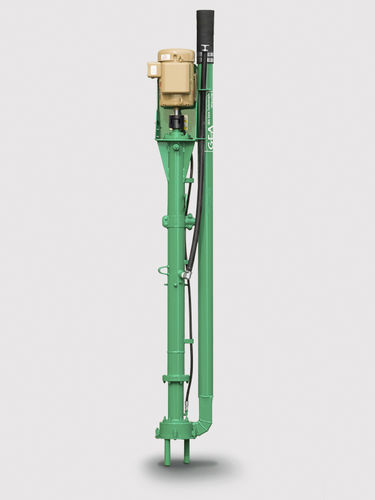

Manure pump

for wastewaterimpellerturbine

As reliable as the 3" Pump, this compact version offers performance and efficiency where space is limited. Key Features •The pump can be installed in a hole as small as 16" (406 mm) in diameter. •Direct drive only. •Available motors: 3 or 5 HP. Not available for 50 Hz electric motor. •3" (75 mm) pipe discharge. •Drive shaft with an anti-vibration bearing. Also available on bronze bushings without oil bath. •Stainless steel threaded shaft to prevent rust and corrosion. •Double bearing housing protected by our 3 seal system. •Available in lengths from 6 to 16 feet (1.8 to 4.8 m) Typical Application Used to transfer hog manure or dairy waste water from a reception pit to the main storage. Impeller and Housing •Impeller with 2 straight blades and sharp edges. •Compact housing that fits in a small pit opening. •4" (102 mm) intake.
