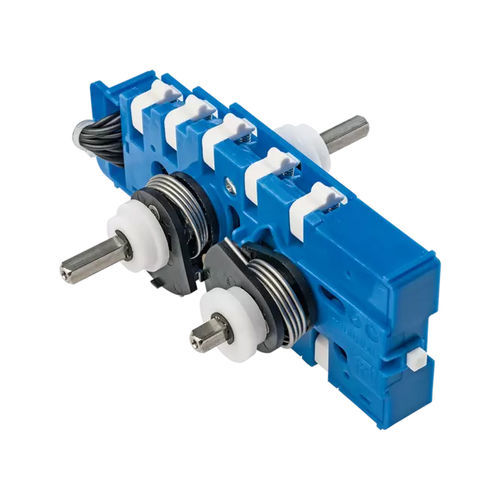

Push-button switch INTEGO

IP68with CANopen interfacecombined

The unique INTEGO combi traction switch combines all the main tiller head functions in one unit: Besides the classic traction switch function when driving, the body protection switch function and, depending on the version selected, additional functions such as the horn and analogue or digital lifting/lowering can be implemented. Two additional digital functions round off the range of functions. Thus, INTEGO constitutes the central unit of a customer-specific tiller head, which can cover all functions depending on the option selected. FEATURES AND ADVANTAGES • Integration of all the main tiller head functions • Non-contacting Hall-effect technology • One or two analogue functions via 6 mm square shafts • Up to five digital functions using the upper pushbuttons • One digital function using the lower pushbutton • Optimised for use with dual controllers • Optional CANopen interface • Protection class: IP 68 • Ideal for the design of customer-specific tiller heads
