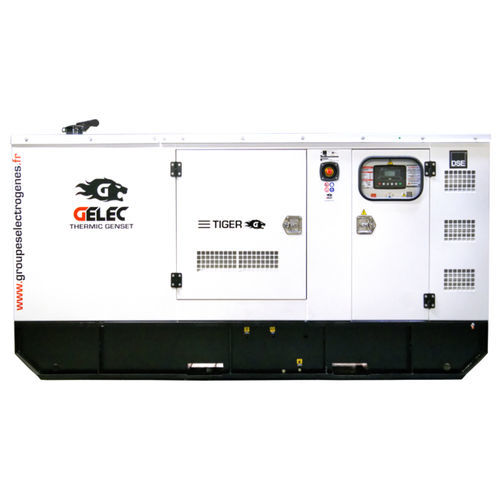

Diesel generator set TIGER-360YC

three-phasestationaryliquid-cooled

Power factor : 0.8 (cosΦ) Frequency : 50 Hz Tank capacity: 790 litres (1750 litres for long-range use) Autonomy on 75% charge: 15,5 hours Autonomy on 75% charge (long range): 34 hours Engine specifications : Number of cylinders : 6 Governor type : electronic Specifications : 4-cycle engine, direct fuel injection , liquid-based cooling Displacement : 11,726 L Maximum standby power at rated rotation 1500tr/min : 480 Cv Compression ratio : 17,5:1 Engine starting type : electrical 24V Air inlet system : Turbocompressed-intercooler Alternator specifications : Excitation system : Self Excited AVR : Stamford Voltage regulation type : electronic Developed for environments such as industrial sites, the TIGER genset range with power outputs of between 88 and 360 kVA is designed to meet the most extreme production demands over long periods, providing continuous or back-up power. This diesel or Bi-Oil genset has been designed to deliver significant power of up to 357 kVA even during intensive operation, guaranteeing the power supply to your electrical installation. It also secures supply to premises and equipment for construction sites, packing plants, greenhouses, vineyards, sawmills and water treatments stations. Available also cogénération option (CHP). Fitted with a 4-pole thermal-magnetic circuit breaker with adjustable differential and a Deep Sea control panel, it is also available as an option with an automatic transfer switch.
