Diesel generator set LEOPARD-6
single-phasemobile50 Hz

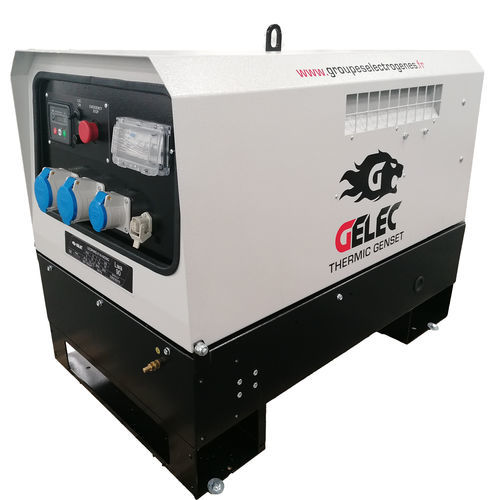

Diesel generator set - LEOPARD-6 - Gelec - single-phase / mobile / 50 Hz

Diesel generator set - LEOPARD-6 - Gelec - single-phase / mobile / 50 Hz - image - 2

Add to favorites

Compare this product

Characteristics

Type: diesel
Phase: single-phase
Portability: mobile
Frequency: 50 Hz
Cooling system: air-cooled
Emissions level: Stage V
Other characteristics: compact
Domain: agricultural
Power: 6 kW
(8.2 hp)
Voltage: 230 V
Rotational speed: 3,000 rpm
(18,850 rad.min-1)
Length: 970 mm
(38 in)
-Not Tr-: 600 mm
(24 in)
Fuel tank capacity: 21 l
(5.5 gal)
Height: 750 mm
(30 in)

Description

General technical description: Power supply: 6 kVA Frequency: 50 Hz Voltage: 230V Operating time: 12.4 h Tank capacity: 21L Weight: 206kg Dimension (L x W x H): 970 x 600 x 750 mm Technical description of the engine: Engine Type: Yanmar Number of Cylinders: 1 Power supply: 10 HP Motor speed: 3000 rpm Air cooling Fuel: Diesel Starting System: Electric Control panel equipped with: - DSE ON/OFF switch - Volt meter - DSE 3110 module (displays warnings, shutdowns, and engine status information like high temperature, low oil pressure, low fuel level, volts and frequency, operating hours, battery voltage monitoring) - Circuit breaker - Emergency stop - 2 CEE 32A single-phase 230V sockets - 1 CEE 16A single-phase 230V socket Soundproof hood Exhaust silencers
