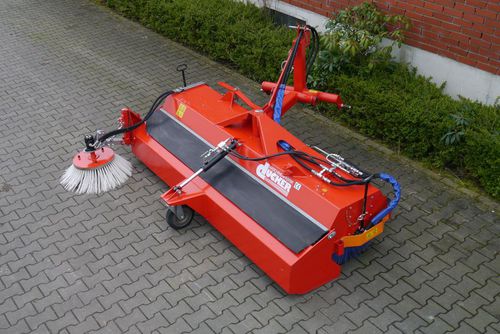

Mounted sweeper HDK series

groundcarefront-mount

The compact build of the series HDK sweepers and the diverse attachment options ensure attachment to tractors, municipal implement carriers, yard loaders, forklifts, etc. The HDK sweepers are available for front or rear attachment. The sweeper roll balances itself, which makes adjustment via the wheels unnecessary. The sweeping rollers of the HDK series have a working width of 1.30 to 2.70 m. The sweepers are serially equipped with disc brushes. Sweeping rollers of plastic corrugated wire mix, snow-sweeping rollers and sweeping rollers in honeycomb form are available as well. The series HDK can be equipped with a hydraulic side brush, a dirt collection tray water spraying device, water high-pressure facility, water tank or dirt scraper bar on request. Like the FKM and SFK models, the HDK machines operate with a selfoscillating sweeping roller. This eliminates the need for adjusting via the wheels. On request, a generously dimensioned dirt collecting bin can be installed. It is opened and closed hydraulically. When sweeping without collecting bin, the bin remains on the device and does not have to be removed. The hydraulically operated rotary side brush is installed on the dirt collection bin and its speed is smoothly adjustable. The diameter of the rotary side brush is 700 mm.
