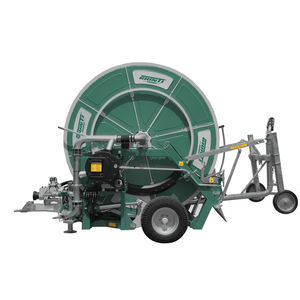

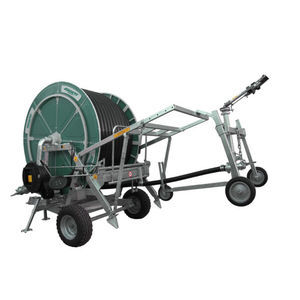

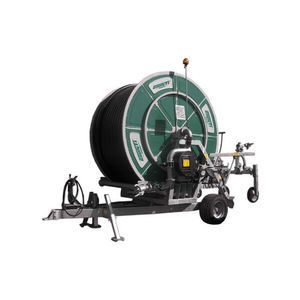

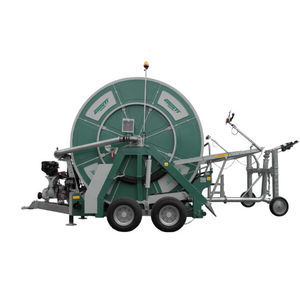

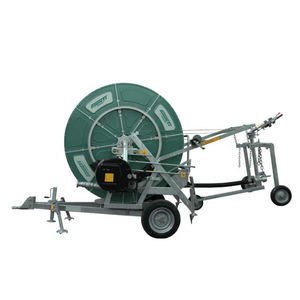

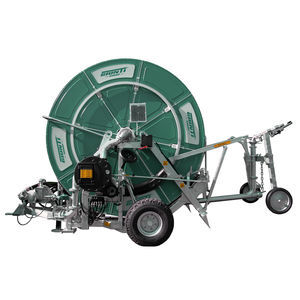

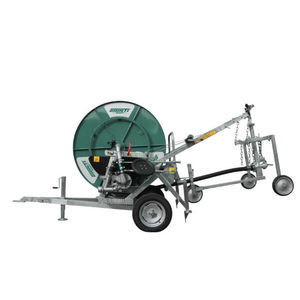

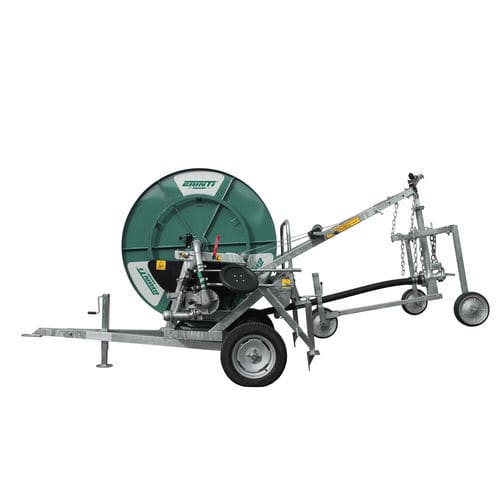

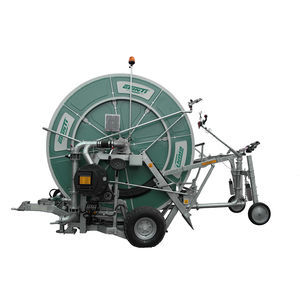

Irrigation hose reel 03.TB

turbine-drivetowed

Tornado TB TB models PE hose size is between 63mm and 75mm with lengths ranging from 200 to 300 meters. Description CONSTRUCTION SPECIFICATIONS – high strength “medium density” polyethylene Pipe; – high efficiency hydraulic turbine included in the gearbox/transmission; – motion transmission to the drum through the coupling of the pinion with a large diameter ring gear; -emergency PTO input with the help of the cardan shaft on the tractor; rotating turret, by using large diameter rotational bearings housed between the fixed lower frame and the upper one; -a device guides a worm gear tube for an optimal backward; mechanical safety device against any wrong overlapping of the pipe while rewinding, with automatic stop of the cycle; a by-pass valve controls the speed of return with hydraulic and manual control; – automatic stop of the cycle when the sprinkler cart is completely retracted; -galvanized frame; -water path and accessories in galvanized steel; -sprinkler trolley; -sprinkler; – safety devices in accordance with the EU requirements. STANDARD EQUIPMENT – 4 speed transmission gearbox; – instantaneous speed of return visualiuzer; – water pressure gauge at the entrance of the machine; – manual mechanical devices handling trolley and foot rear parking; – rotating platform – 2 extra front feet stationing; – height adjustable trailer hitch; – variable carriageway.
