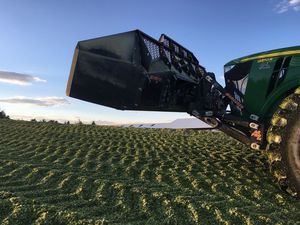

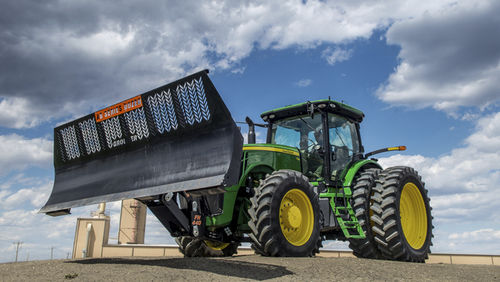

Dozer blade AG240 Series

Get lifting heights that OEM configurations simply cannot match with our AG Series blade systems, accessories and hitches. These systems are ideal for 100-370 horsepower row crop tractors and will give you exceptional versatility and ease of use in the yard and the field. Features - 36"-38" Lift Height - 18"-20" Under Carriage Clearance - Includes Grouser Front Hitch - Quick Connect & Disconnect at the blade - Adjustable Skid Shoes - 21°-23° Approach Angle - 112" to 116" from cutting edge to front axle Specifications - 5" X 12" Angle Cylinder (optional) - 4" X 8" Tilt Cylinder (optional) - 5" X 12" Lift Cylinder - 5/8" X 6" reversible cutting edge - Blade angles 30 degrees right or left (optional) - Blade tilts 10 degrees (optional) - Width's available from 10' to 16' - Blade height 60" - 3/16" thick moldboard NEW FEATURES FOR AG240 - Single lever quick attach - Increased under tractor clearance - Easy access hydraulic couplers - Custom name plate - Easy adjust skid shoe - Grouser exclusive parallel lift system - Larger lift and hydraulic angle cylinders
