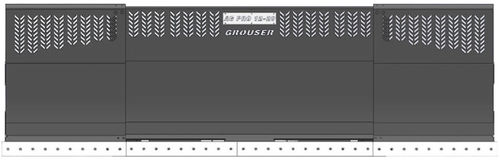

Dozer blade AG Pro series

dozer blade
dozer blade
dozer blade
dozer blade
dozer blade
dozer blade
dozer blade
Add to favorites
Compare this product


Description

You won't find a better adjustable-width silage dozer blade anywhere. The AG PRO 3-5 and 12-20 combine maximum capacity with exceptional maneuverability to take on the biggest silage piles. At 72 inches, it's the tallest blade in the industry. Operators can extend and retract the blade hydraulically on the fly, either to increase efficiency on the pile or to comply with regulations while heading down the road. Features - Hydraulically Adjustable Width - Plus Vertical Lift Design - Single Lever Quick Attach System - Easy Adjustable Skid Shoes - Custom Nameplate Specifications: 3-5 - Horsepower: 325-700 - Paralift: Yes - Blade Widths: 9.5' - 17.5' - Blade Height: 77" - Top Extension: Included - Lift Height: 54"-56" - In-Ground: 20"-22" - Ground Clearance: 20"-22" - Angle: +/-30 deg - Tilt: +/-10 deg - Quick Attach: Yes - Lift Cylinder: 2) 4.5"X18" - Cutting Edge: 3/4" X 8" Reversable - Transport Width: 9.5' Specifications: 12-20 - Horsepower: 500-700 - Paralift: Yes - Blade Widths: 12' - 20' - Blade Height: 77" - Top Extension: Included - Lift Height: 54"-56" - In-Ground: 20"-22" - Ground Clearance: 20"-22" - Angle: +/-30 deg - Tilt: +/-10 deg Quick Attach: Yes - Lift Cylinder: 2) 4.5"X18" - Cutting Edge: 3/4" X 8" Reversable - Transport Width: 12'
