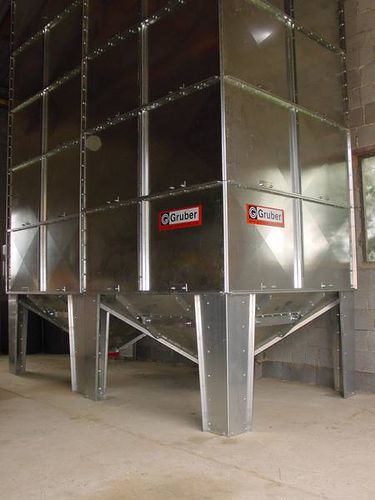

Grain silo Modulsilo

galvanised steelhopperrectangular

Modulsilos of Gruber Grainsystems are especially good for: -for reliable storage of grain, pellets and other pulk -as a storage option for use as a buffer silo, storage silo or working silo for the suction pipes of a hammer mill -for optimum protection from rats, mice and other rodents -for easy self assembly. Gruber Modulsilos can be used for small to medium quantities of various bulk materials: for indoor installation with minimal space requirements fully galvanized version largest possilbe volume: 30 m³ silo hoppers in screwed version (low transport volumes). The hoppers are available in the following inclinations: 40° (grain and granules) 50° (pellets) 60° (soybean meal or difficult flowing materials). The maximum height of the silo walls is 4,5 m (5 rings à 900 mm, total silo height with hopper is approx. 7,5 m). The silo can be delivered optionally with the following accessories: ventilation pipe Ø 250 (built-in funnel) in perforated steel, 2 mm Ø outlet slide foot extension entrance door inspection glasses (for the control of the level) silo covers (flat or conical) filling pipes and filtration systems.
