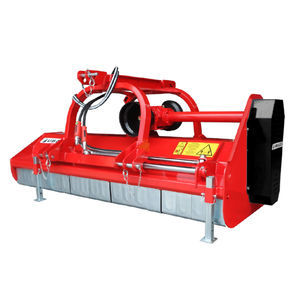

Mounted mulcher REV M seriesforeheadhammerknife
Add to favorites
Compare this product
Characteristics
- Type
- mounted, forehead
- Technology
- hammer, knife
- Applications
- forestry, for row crops, grass, vineyard
- Number of hammers
- 20 hammers, 24 hammers, 18 hammers, 22 hammers
- Number of knives
- 48 knives, 40 knives, 36 knives, 44 knives
- Other characteristic
- PTO-driven, for tractors
- Cutting width
160 cm, 180 cm, 196 cm, 220 cm
(62.99 in, 70.87 in, 77.17 in, 86.61 in)- Rotational speed
540 rpm, 1,000 rpm
(3,393 rad.min-1, 6,283 rad.min-1)- Tractor power
55 ch, 65 ch, 70 ch, 80 ch
(55 hp, 65 hp, 70 hp, 80 hp)- Weight
610 kg, 650 kg, 700 kg, 760 kg
(1,344.82 lb, 1,433 lb, 1,543.24 lb, 1,675.51 lb)
Description
The REV reversible mulchers is a machine designed to be used with tractors ranging from 55 to 80 HP. It is particularly suitable for shredding grass, woody material, vine shoots, potatoes, cotton, etc.
Standard equipment
-Three-point hitch with manual lateral displacement
-Gearbox with built-in freewheel - PTO speed 540 or 1000 rpm
-PTO shaft
-Adjustable rear leveling roller
-Support foot
-CE safety guards
-Counter-knives
Accessories
-support sleds
-hydraulic lateral shifting kit
-Double sheet (to be ordered) (RevM 160<180)
-Double sheet (to be ordered) (RevL 200<220)
-Front chain guard (to be ordered) (RevM 160<180)
-Front chain guard (to be ordered) (RevL 200<220)
-Upper counter-knives.
