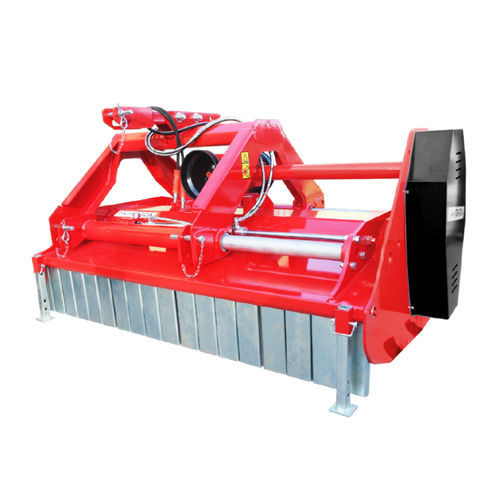

Mounted mulcher ERA REV series
hammerknifevineyard

mounted mulcher
mounted mulcher
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
hammer, knife
Applications
vineyard
Number of hammers
16 hammers, 20 hammers, 18 hammers, 22 hammers, 28 hammers, 14 hammers, 26 hammers
Number of knives
32 knives, 40 knives, 36 knives, 56 knives, 28 knives, 44 knives, 52 knives
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

160 cm, 180 cm, 200 cm, 220 cm, 250 cm
(62.99 in, 70.87 in, 78.74 in, 86.61 in, 98.43 in)

Max.: 280 cm
(110.24 in)

Min.: 140 cm
(55.12 in)

Rotational speed

540 rpm, 1,000 rpm
(3,393 rad.min-1, 6,283 rad.min-1)

Tractor power

70 ch, 80 ch, 90 ch, 100 ch, 120 ch
(70 hp, 80 hp, 90 hp, 100 hp, 120 hp)

Weight

Max.: 1,100 kg
(2,425.08 lb)

Min.: 730 kg
(1,609.37 lb)

Description

The versatile and reversible machine is designed to deliver high performance in the field. It can be used both in front and rear configurations, providing flexibility in operation. The mulchers is designed to be used with tractors ranging from 70 to 120 HP. Standard equipment -Three-point hitch with manual lateral displacement -Gearbox with built-in freewheel - PTO speed 540 or 1000 rpm -Adjustable rear leveling roller -PTO shaft -Support foot -CE safety guards -Counter-knives -Mallets -Reinforced frame -Counter-frame -Double row of counter-knives -Double sheet Accessories -support sleds -hydraulic lateral shifting kit -Upper counter-knives.
