- Mechanical seed drill
- Gruppo Rapisarda Ubaldi

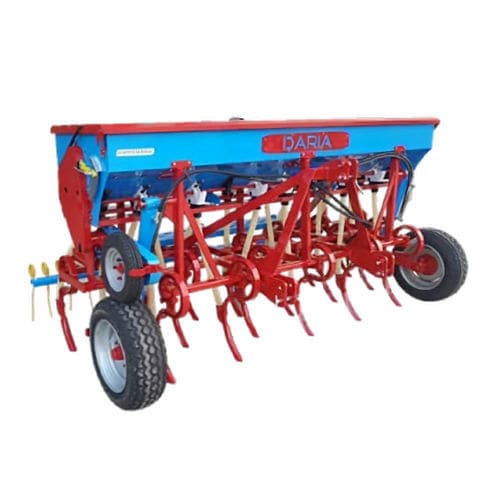

Mechanical seed drill DARIAtinetractor-mounted3-point hitch
Add to favorites
Compare this product
Characteristics
- Seed distribution
- mechanical
- Type
- tine
- Other characteristics
- tractor-mounted, 3-point hitch, with harrow
- Working width
2.5 m, 2.7 m, 3 m
(8'02" , 8'10" , 9'10" )- Inter-row spacing
16.5 cm, 17 cm
(6.5 in, 6.7 in)- Weight
Max.: 890 kg
(1,962.1 lb)Min.: 720 kg
(1,587.3 lb)- Seed hopper volume
550 l, 600 l
(145.3 gal, 158.5 gal)
Description
The DAR series mechanical seed drill is equipped with an oil bath variable speed drive. It has a three-point hitch capacity. The seed drill is manufactured with depth adjustment wheels using a screw support (it is not possible to install the IIS accessory, hydraulic lifting system, afterwards unless specified during the initial manufacturing of the machine). The harrow support is a spring-loaded support (refer to page 63). The standard harrow springs are produced with two coils without a curling hammer.
