•Heavy duty friction operation
•Redundant security protection design, mechanical lock and electronic lock can be configured at the same time
•Large angle design
•Non-Contacting Hall effect technology, high reliability, long service-life
•IP67(Only for electronics)
APPLICATION
•Agricultural machinery
•Controlling panel
•Armrest box controller
TECHNICAL SPECIFICATIONS

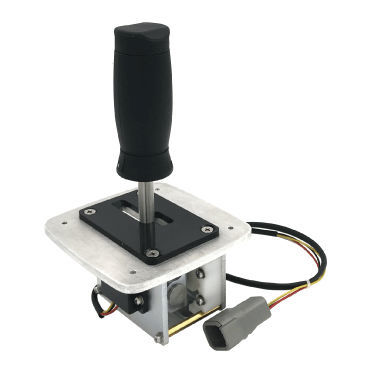

Industrial joystick controllers
Mechanical data
Travel angle: -20°~+35°(Z-type operation) ±35°(Single axis operation)
Mechanical life: 3 million cycles
Operating force: 4.5~5.5Nm
Maximum allowable force: 300N
Product weight: 1050g
Electrical data
Supply Voltage: 5.0±0.5Vdc or 9~32Vdc
Power current consumption: 10KΩ
Insulation resistance: >1000MΩ
EMC: 100V/m
Microswitch rated current: 2A@30Vdc
