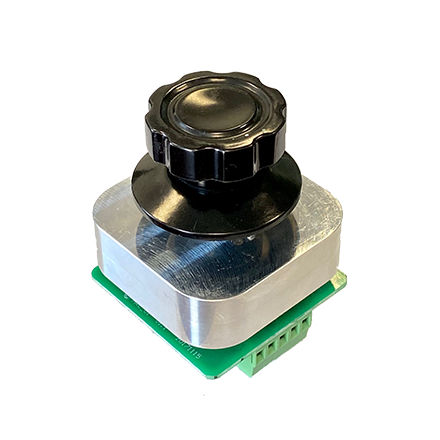

Hall effect joystick HRC series

•CW and CCW rotation or end to end rotation •Friction hold, detent position customized •Comfortable operation •Non-contacting Hall sensor, high durability, long service-life •Supply voltage 9~32Vdc is available •Optional redundant output APPLICATION •Fixed speed control function of various construction machinery •Control panel of road machinery •Control panel or control armrest box of various oil machinery and mining machinery TECHNICAL SPECIFICATIONS Mechanical data Tavel angle：±135°（dual direction operation,customizahle） 270°（single direction operation,customizable） Breakout force：3~5N Operating force：15N Maximum allowable force：120N Mechanical lifetime：5 million cycles Weight：300g Electrical data Supply Voltage：5.0±0.5Vdc，or 9～32Vdc Center Voltage：2.5±0.1V Maximum overload voltage：20Vdc Load resistance：>10KΩ EMC：100V/m Power current consumption：1000MΩ
