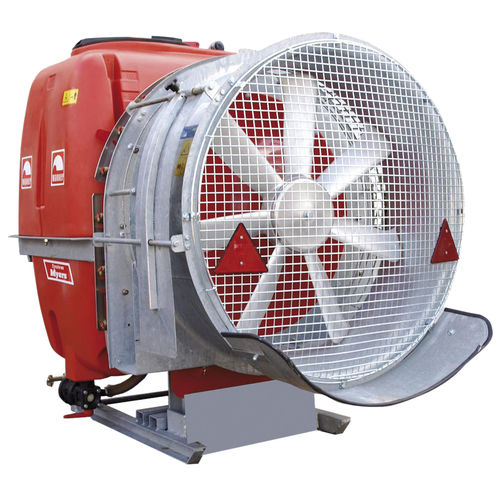

Mounted agricultural atomizer D36/300-70 PE
for viticulturewith axial propellerhydraulic

Add to favorites

Compare this product

Characteristics

Mobility: mounted
Application: for viticulture
Type: with axial propeller
Technology: hydraulic
Other characteristics: with diaphragm pump, with piston pump
Capacity: 300 l
(79.3 gal)
Pump capacity: 70 l/min
(18.5 us gal/min)
Pump pressure: 50 bar
(725.2 psi)
Air flow: 45,000 m³/h, 60,000 m³/h
(1,589,160 ft³/h, 2,118,880 ft³/h)

Description

Frame Stable, hot galvanised profile steel frame construction with optimal centre of gravity and a very close connection Tank 300 Liter PE-Formbehälter mit Skala und Füllstandsschlauch, hydraulischem Rührwerk, Tanköffnung mit Einfüllsieb, Handwaschbehälter mit Auslaufhahn Pump Piston-membrane pump APS 71 - 70 l/min at 50 bar Filter Suction filter with automatic shut-off valve, central pressure filter with quick cleaning Control unit Mechanical operating unit – with part width section control, preasure adjustment and gauge (manometer 0-60bar), via bowden cables from the tractor operated Blower Drive two-stage gearbox with zero position Blower Axial-blower with an air capacity of approx. 45./60.000 m³/h Nozzles Single nozzle with drip stop can be swiveled and suppressible, nozzle inserts: Albuz ATR according to choice
