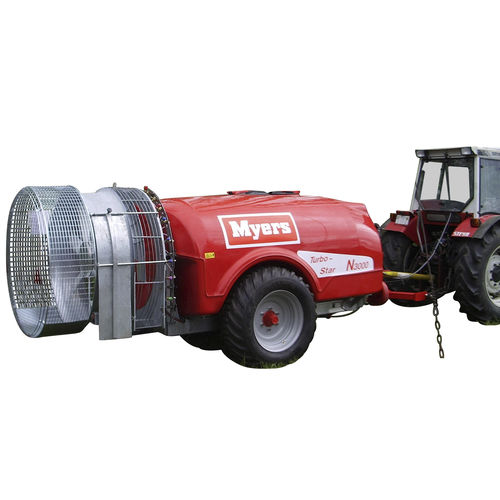

Towed agricultural atomizer N48A/3000-140 GRP
for arboriculturewith axial propellerhydraulic

towed agricultural atomizer
towed agricultural atomizer
Add to favorites
Compare this product


Characteristics

Mobility
towed
Application
for arboriculture
Type
with axial propeller
Technology
hydraulic
Other characteristics
with diaphragm pump, with piston pump, pneumatic
Capacity

3,000 l
(792.5 gal)

Pump capacity

140 l/min
(37 us gal/min)

Pump pressure

50 bar
(725.2 psi)

Air flow

90,000 m³/h, 130,000 m³/h
(3,178,320 ft³/h, 4,590,906.7 ft³/h)

Description

Stable hot galvanised frame construction, support wheel, running axle with adjustable track, lower link attachment, lights, wide-angle PTO shaft on one side Tank GRP tank with integrated water tank, can be switched to system cleaning. By agitator shut off the system cleaning is also possible with full or partially filled tank without changing the concentration.Two tank openings with lids, flushing mechanism in the tank screen, level gauge and filling level indication hose , hand washing tank with drain cock Pump Piston-membrane pump IDS 1401 - 140 l/min at 50 bar Filter Suction filter with automatic shut-off valve, central pressure filter with quick cleaning Control unit Mechanical operating unit – with part width section control, preasure adjustment and gauge (manometer 0-60bar), via bowden cables from the tractor operated Blower Drive two-stage gearbox with zero position Blower Axial-blower with an air capacity of approx. 90./130.000 m³/h Nozzles Single nozzle with drip stop can be swiveled and suppressible, nozzle inserts: Albuz ATR according to choice
