Towed sprayer AS1000/16-100
nursery plantsgardenhydraulic

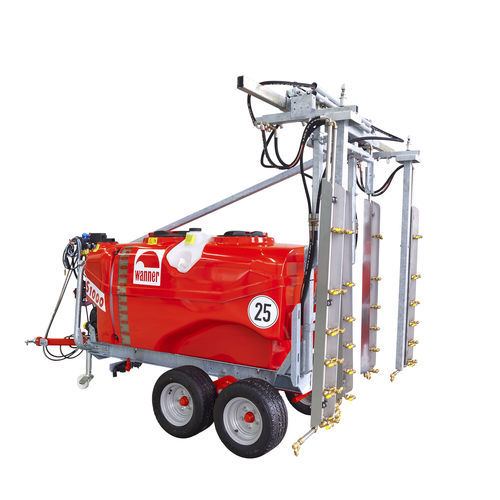

Towed sprayer - AS1000/16-100 - Hans Wanner GmbH Maschinen- und Fahrzeugbau - nursery plants / garden / hydraulic

Towed sprayer - AS1000/16-100 - Hans Wanner GmbH Maschinen- und Fahrzeugbau - nursery plants / garden / hydraulic - image - 2

Towed sprayer - AS1000/16-100 - Hans Wanner GmbH Maschinen- und Fahrzeugbau - nursery plants / garden / hydraulic - image - 3

Towed sprayer - AS1000/16-100 - Hans Wanner GmbH Maschinen- und Fahrzeugbau - nursery plants / garden / hydraulic - image - 4

Add to favorites

Compare this product

Characteristics

Mobility: towed
Application: nursery plants, garden
Technology: hydraulic
Other characteristics: folding arms, with diaphragm pump, with piston pump
Capacity: 1,000 l
(264.2 gal)
Pump capacity: 70 l/min, 100 l/min
(18.5 us gal/min, 26.4 us gal/min)
Pump pressure: 50 bar
(725.2 psi)

Description

Spray poles for 2 rows hydraulically displaceable with GRP-tank Frame Stable hot galvanised frame construction, support wheel, running axle with adjustable track, lower link attachment, lights, wide-angle PTO shaft on one side Tank GRP tank with integrated water tank, can be switched to system cleaning. By agitator shut off the system cleaning is also possible with full or partially filled tank without changing the concentration.Two tank openings with lids, flushing mechanism in the tank screen, level gauge and filling level indication hose , hand washing tank with drain cock Pump Piston-membrane pump APS 71 - 70 l/min at 50 bar Filter Suction filter with automatic shut-off valve, central pressure filter with quick cleaning Control unit Mechanical operating unit – with part width section control, preasure adjustment and gauge (manometer 0-60bar), via bowden cables from the tractor operated Blower Drive N/A Blower N/A Nozzles Single nozzle with drip stop can be swiveled and suppressible, nozzle inserts: Albuz ATR according to choice
