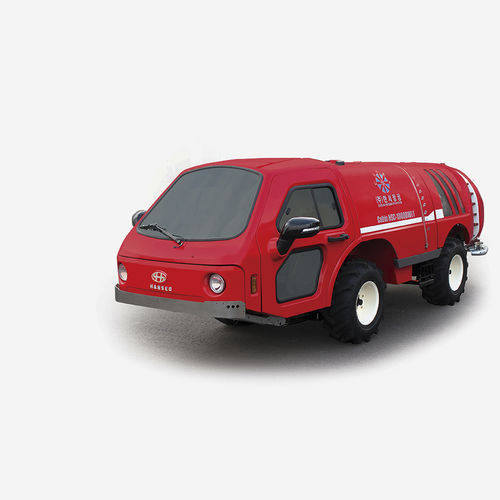

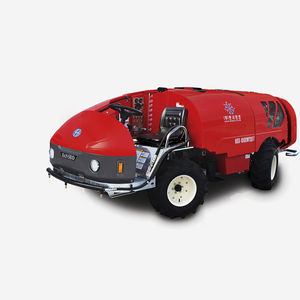

Self-propelled sprayer HSC-1000DWⅡ

for arboriculturewith combustion engine

Airframe Specification - Full length x Full width x Full height - - 4,335 x 1,470 x 1,340(㎜) Weight - - 1,801㎏ Drug tank capacity - - 1,000ℓ Engine Type - - Hyundai Diesel D4BB-TC(Turbo engine) Output / Revolution Speed - - 39/2,500~44.1/2,900(kw/rpm, 60-horsepower) Fuel - - Diesel Driving part - Shifting steps - - Main Transmission: Forward 5 steps and reverse 1 step / Sub Transmission: 2 steps Driving speed - - 1.0~1.5km/h Driving type - - 4-wheel drive / 4-wheel steering Wheel Specification - - 26 x 10.00-12 8PR Ventilation air volume - - 600~700㎡/min
