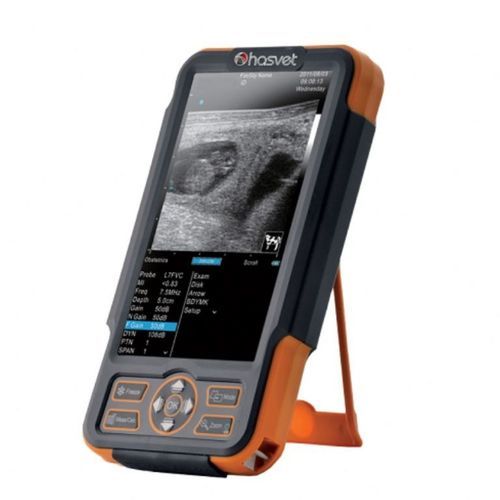

Hand-held veterinary ultrasound system 838

for cattlefor petshorse

The device is produced with a quality approach that exceeds international norms. In addition to certificates such as ISO 9001, FDA and CE, products with different features that have been produced and approved by operating tests for 72 hours are created and shipped. 838; It is a product that emerges as a result of the combination of experience, production, value and importance given to R&D. HASVET 838 is used for reproduction in cattle, horses, sheep, dogs and cats, pregnancy diagnosis, determination of fetus gender, pet's abdomen, cardiology, soft tissue, tendon examination. It has a special storage area that provides easy use for farm and field veterinarians. Thanks to the possibility of transferring with glasses, it provides use without tiring the doctor. Technicial Specifications: • Monitor: 7 inch WVGA LCD • Weight: 0.8 kg (1.3 kg including battery and probe) • Viewing Modes: 5 different modes: B, 2B, ZOOM B, B/M, M • Charging: 4.5 hours (160 minutes ± 20 minutes working under normal operating conditions with high capacity rechargeable battery) • IP67 Environmental Conditions Resistance Test Certificate on the Probe: Dust ingress is completely prevented. It is resistant to immersion in water at the specified temperature and pressure for a maximum of 30 minutes. • IP54 Environmental Conditions Resistance Test Certificate on the Main Unit: Dust penetration into hazardous areas has been reduced to levels that will not cause harm. Water splashing on the device from any direction will not damage it. • Probes: L50/7.5 MHz linear rectal probe (Standard) - L65/5.0 MHz linear rectal probe (Optional) - R20/5.0 MHz micro-convex probe (Optional) • Scanning Depth: 250mm
