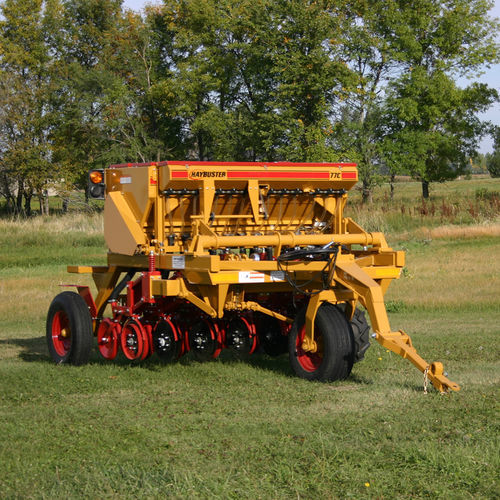

Hopper seed drill 77C
disccoulter12-row

hopper seed drill
hopper seed drill
hopper seed drill
hopper seed drill
hopper seed drill
hopper seed drill
hopper seed drill
Add to favorites
Compare this product


Characteristics

Seed distribution
hopper
Type
disc, coulter
Number of rows
12-row
Type of plantation
for soy
Other characteristics
towed, depth control, multi-row
Working width

7'00"
(2.13 m)

Inter-row spacing

7 in

Power required

35 ch
(35 hp)

Weight

1,632.9 kg
(3,599.9 lb)

Seed hopper volume

423 l
(111.7 gal)

Fertilizer hopper volume

405.3 l
(107.1 gal)

Description

It plants 7 feet wide and is perfect for smaller wildlife plots and renovating pastures. The 77C is a towable unit and requires just a minimum of 35 hp to operate, depending on terrain and soil conditions. The two-compartment hopper offers the flexibility of seeding with dry fertilizer, seeding alone, or planting two different seeds. Haybuster Row Opener Built for accuracy and versatility. .Accurate depth control is maintained by the packer wheels and the parallel linkage. .Depth control adjustment. .Pressure springs provide 125-300 lbs. (61.24-136.08 kg) of down pressure to adapt to varying soil conditions. .Optional native grass attachment includes an agitator, a large convoluted hose, and special seed boot. .Optional drop tube assembly with convoluted hoses. .Optional coulter depth bands help control disc opener depth in soft soil conditions. .The ground drive wheel is now wider assuring accurate seeding in all conditions. Versatility for Use in a Variety of Seed Bed Conditions Haybuster’s grain and grass drills are truly all-purpose drills. They will seed a wide variety of seeds, from warm and cool season grasses and legumes to small grains and soybeans. Up to three different products can be metered simultaneously at different rates (when the optional legume box is attached). Choose your combination: three seeds, or two seeds and dry fertilizer. These drills work well in all conditions, including conventional, minimal till, no till, and pasture renovation and reclamation projects.
