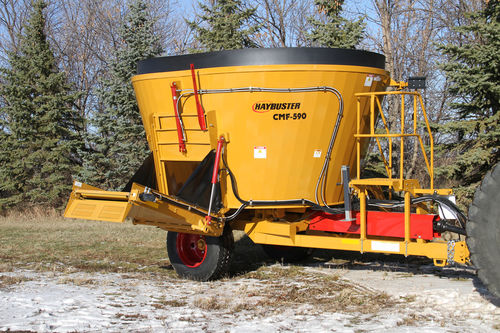

Vertical feed mixer CMF-590

towedside dischargesingle-auger

The 590 is part of our CMF series of vertical mixers that cut materials like hay, straw, and corn stocks. They also mix materials like distillers, silage, corn, and more. Mixing Capacity The CMF-590 has a 590 cu. ft. mixing capacity with the standard extension. Conveyor The unloading door is 42” wide and can be on the left or right side of the machine. Conveyor options are a 3’ or 5’ extension which gives a feeding height range of between 40” and 62”. Magnets Magnets on the discharge chutes remove metal, such as bale wire, from feed providing protection for your cows. CV PTO The CMF-590 comes equipped with a Heavy-Duty Constant Velocity 1000 RPM PTO. The 2-Speed Gear Box is used for loaded start-ups and heavy rations. 4-Point Scale 4-point scale for accurate weighing, with reduced scale bounce during loading and feeding. Rigid Axles Rigid heavy-duty axles on 2 385/65R 22.5 tires. Clutch Free motion clutches on the driveline protect the heavy-duty gear boxes. Gear boxes come with a 2-year warranty. Digi-Star The CMF-590 is equipped with a Digi-Star 4 pt. scale and monitor. Various monitor options are available. The Digi-Star system is powered by a standard onboard 12-volt battery. Digi-Star feed rationing programs are also available. Auger with Knives 104” heavy-duty single auger with up to 7 self-sharpening serrated knives driven by an HD USA gearbox. Ladder Ladder mounted on front of machine allows for viewing of mixed ration. The ladder should only be used while the machine is stopped. Vertical Knives Adjustable vertical knives for more aggressive cutting.
