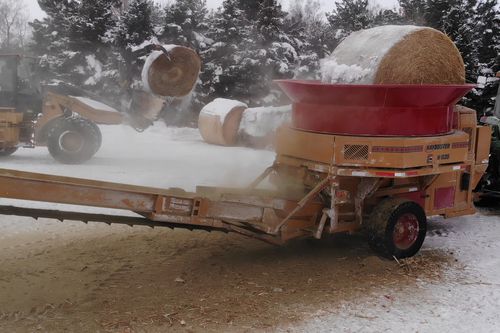

Grain grinding mill H-1135E

for strawhammerstationary

The H-1135 Electric tub grinder has all the features of the PTO driven heavy-duty H-1135. It’s powered by two electric motors, a 300 hp motor that drives the hammermill and a 10 hp motor that powers the hydraulics. It is available with a variety of electrical packages. High Capacity Augers The new dual 12” x 4’ 6” (30.48 cm x 1.37 m) belly augers are suspended by two heavy-duty bearings and are located at the base of the newly designed screen area. The short dual-augers allow for a sealed under screen discharge area. The larger discharge area also provides for higher capacities and reduces the possibility of plugging. 50” Heavy-Duty Hammermill The Big Bite 50” (127 cm) heavy-duty hammermill is now standard equipment and is located at the rear of the tub to reduce the length of the belly discharge. This, along with the increased area around and under the screens, accelerates product discharge and reduces the possibility of plugging. The heavy-duty hammermill operates at 2300 RPM or 40% faster than previous models and is constructed with 88 1/2” (1.27 cm) swinging hammers. The hammers have four hardened working edges. They are held in place with 1 1/4” (3.18 cm) case-hardened hammer rods. The mill plates are 1/2” (1.27 cm) thick and 16” (40.64 cm) in diameter. The hammermill is mounted on a 3-1/2” (8.98 cm) stress-proof shaft supported by 3-1/4 (8.23 cm) bearings. During operation the swinging hammers extend to a full 26” (66.04 cm). DuraTech Electronic Governor The DuraTech model RCB93 electronic governor is the reason for a smooth productive machine.
