GNSS receiver vRTK

satelliteGLONASSGPS

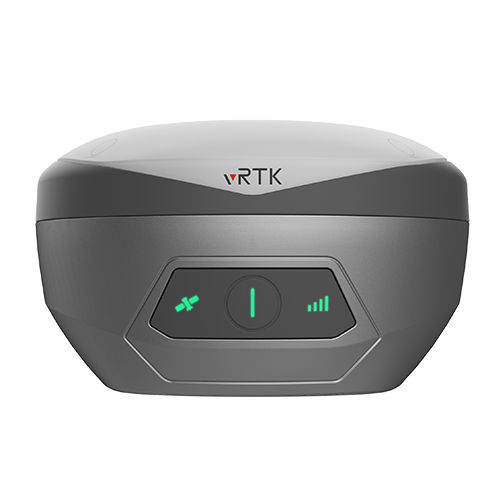

Equipped with professional dual cameras, vRTK is Hi-Target’s first lightweight and innovative visual RTK receiver product, which not only enables non-contact image surveying, breaking through the objective constraints of previous work, but also improves the speed of stakeout with the function of Live View Stakeout. It greatly improves the work efficiency of engineering users. Dual Cameras for Image Survey and Live View Stakeout Non-contact measurement greatly improves the usable range of GNSS and efficient safe operation. Strong Signal and High-quality Data -New generation GNSS SOC chip with 1408 channels, supports new frequency points B1C, B2a, and B2b RTK decoding for Beidou-3 Satellites. -Introduction of multi-frequency anti-jamming technology and multi-step adaptive filtering technology to ensure strong signals, high-quality data, fast fix, and high accuracy. Abundant Industry Data Results -Abundant types of data results meet the needs of different industry applications. -Compatible with the mainstream modelling software to attain point cloud and 3D modelling in one step. Product Parameters 8mm+0.7mm/°tilt Tilt Survey Accuracy 1408 Channels BDS/QZSS/IRNSS/SBAS Satellite Tracking 2cm Image Stakeout Accuracy 2cm ~ 4cm Image Survey Accuracy Built-in 8GB ROM Data Storage
