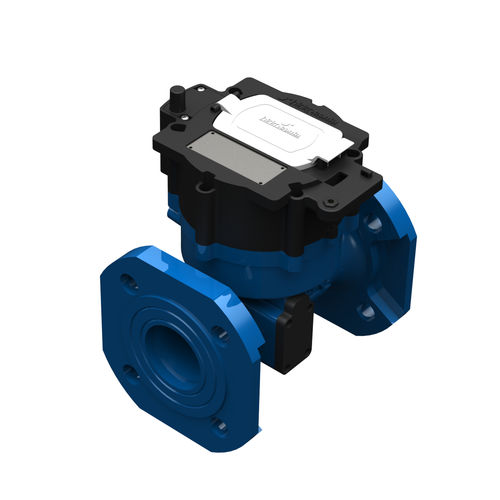

Water flow meter Nautilus

ultrasonicirrigationbattery-operated

NAUTILUS ultrasonic flowmeter with alphanumeric display and ratio accuracy R500. It has an internal battery that lasts more than 10 years. Ultrasonic flowmeter NAUTILUS flowmeters ranges from DN 50 to DN 200. -Maximum operating pressure: 1.6 MPa -Temperature: T50 -Accuracy: Class 2 -Battery life: 10 years -Protection: IP68 -Ambient operating temperature: -20˚C/55˚C -Pressure losses: Δp16 Installation conditions (sensitivity) There are two different sensitivities, according to the diameter of this ultrasound flow meter, from DN 50 to DN 300; the flow meter can be installed with no need for straight sections at the meter’s inlet or outlet points. Additional space will be required between the meter and any other conduit to guarantee accurate measuring results for higher diameters. -DN50 – DN300: U0/D0 -DN 350 – DN400:U5/D3 Ratio The accuracy of Hidroconta’s Nautilus flow meter varies according to the gauge, maintaining a high accuracy at all times to guarantee the installation’s proper operation. -DN50 – DN300: R500 -DN 350 – DN400: R250
