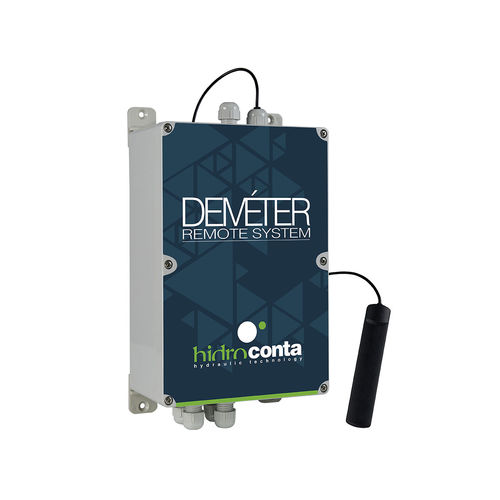

Control valve irrigation control panel Deméter 4h

battery-powered

Deméter is an IoT device made by Hidroconta to control hydraulic equipment such as hydraulic valves and water meters and sensors on water distribution systems. Communications tailored to the system’s topology Deméter 4H communicates with a central server using GPRS technology or free-band radio and it can operate continuously for 6 months with no communications without losing any information. Self-contained device Deméter, Hidroconta’s remote control device, is a fully autonomous system. It is powered by batteries and, as an additional aid, it can be charged by a small solar panel. •Battery: lead-acid rechargeable 6 V/12 Ah battery •Solar panel: according to the communications frequency 12 V/5 W. It manages multiple assets at once It controls up to four hydrants (water meter plus valve), one digital input and output and two analogue inputs. It can be extended using expansions. Dual functionality •This hardware developed by Hidroconta can function as a GPRS end-point or radio and as a GPRS/radio mixed communications hub. •It receives and concentrates communications from a radio subnet and retransmits them via GPRS. Analogue inputs •2 10-bit resolution 0-20 / 4-20 mA analogue inputs. •The device has a 15 Vdc terminal to power the sensors. Meter inputs •Deméter 4H has 4 meter inputs. Designed for reed-type potential free contacts. 30 uA consumption with a closed contact. •They can also be used with open collector-type pulse emitters (respecting the polarity). Digital input Potential free contact. Similar to that described for the meter inputs. Useful when used with intrusion detection systems, digital pressure switches, etc.
