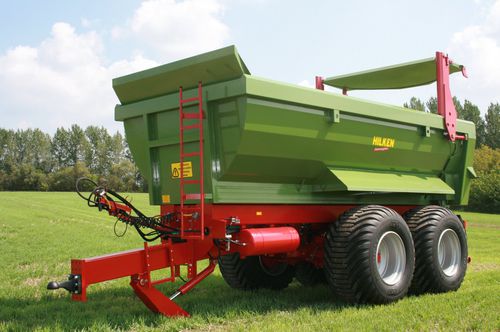

Dump trailer HI2250HM

tandem axleagricultural22 tons

Logical development, excellent materials, stable components This is Q (quality). Not cheap, but inexpensive, modern and high- powered trailer .Hardox half round-trough .High performance axles ea.14 t at 105kmh, extra sealed break shafts, hugh bearing combination .heavy load multi-axle for truck-trailer, long lifetime and less subsequent costs characterize this axle in the roughest conditions .Tandem-aggregate oscillating from a large-volume tube, extremely stabil and all-terrain .Axle unit is bolted to the chassis .Chassis and bridge frame made of closed tubular profile S355 .Hydraulic skid leg support with double acting cylinders, with tractor connection, with stopcock, also for uneven undergrounds well suitable .Large-volume telescopic cylinder guaranteed a large tilt-angle (over 60°) .Towing device height adjustable for K80 and towing eye suitable, sprung execution(above and below) speed:40kmh/60kmh wall thickness:6 mm Hardox bottom:6mm Hardox axle:10-hole cylinder:6 positions rocker bearing:Ø 110 mm flanged tyres:710/50 R26,5 traction device:K80 optional towing eye varnishing:2-component PUR multilayer hard lacquer TÜV certificate:40kmh others:freight charges on request special equipment:tyres 650/55 R 26,5 profil 380 automatic trailer coupling trailer coupling 8t Air and hydraulic connection for second trailer 2nd hydraulic drive-shaft Chaff-top 1200 mm high
