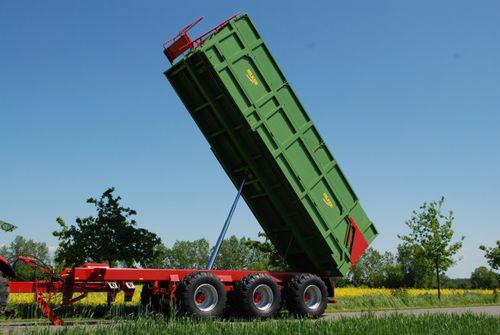

Tipping trailer HI34000MK XL

3-axleagricultural34 ton

Logical development, excellent materials, stable components This is Q (quality). Not cheap, but inexpensive, modern and high- powered trailer .High performance axle ea 14 t at 105kmh, extra sealed break shafts, hugh bearing combination .heavy load multi-axle for truck-trailer, long lifetime and less subsequent costs characterize this axle in the roughest conditions .Chassis-and Bridge-Frame made of closed tubular profile S355(ST52) .Hydraulic skid leg support with double acting cylinders, with tractor connection, with stopcock, also for uneven undergrounds well suitable .Large-volume telescopic cylinder guaranteed a large tilt-angle .Towing device height adjustable for K80 or towing eye suitable, sprung execution .Hydraulically opening rear wall with double acting cylinders .locking block for dosed opening and secure closing speed:40kmh/60kmh wall thickness:4 mm Hardox axle:10-hole cylinder:6 positions rocker bearing:Ø 110 mm flanged tyres:560/60 R 22,5 traction device:K80 optional towing eye varnishing:2-component PUR multilayer hard lacquer TÜV certificate:40kmh others:2 steering axles hydraulically lockable hydraulic axle support ALB controller (automatic load-dependent brake) Parabolic spring 100mm wide, 3 layers wide spring-center Light Connection for 2.trailer Grain slide with lever grain discharge with lever
